M1KE audio not being heard on local repeater

KA8SCP

I am connected to WB1GOF C using the REF/XRF Gateway (not the Reflector button)

When I key up... I am not being heard on the local repeater but I am heard on by others on the connected reflector.
The gateway log shows a "direct" connection for RPT1/RPT2. That does not seem right?

Remote dongle tx start (KA8SCP ) streamid f369 hdr OK 2025/02/07 16:01:55.711
rpt2 (WB1GOF C) rpt1 (KA8SCP ) urcall (WB1GOF C) mycall (KA8SCP / )
user message (Terry / M1KE ) mycall (KA8SCP ) streamid f369
hdr f 000000 r2 DIRECT r1 DIRECT ur WB1GOF C my KA8SCP / fc b85a OK
Remote dongle tx end (KA8SCP ) streamid f369:b5f4 cnt 65 missed 0 elapsed 00:01 2025/02/07 16:01:56.638

HA2NON

You usually need to transmit to the G (remote) module on gateways to make them forward your call to the RF side. If it does not work using the G module then ask the server admin what remote module to use.

KA8SCP

so... is this correct?

KA8SCP

apparently not... my audio and signal is not transmitted on the local repeater.

Found this:

User not heard on the RF side of the repeater:

OS3/4: linkiing to a D-Star gateway
Make sure Auto set URCALL to network option is NOT enabled (no check mark in box) or folks will not hear you on the RF side of the gateway.

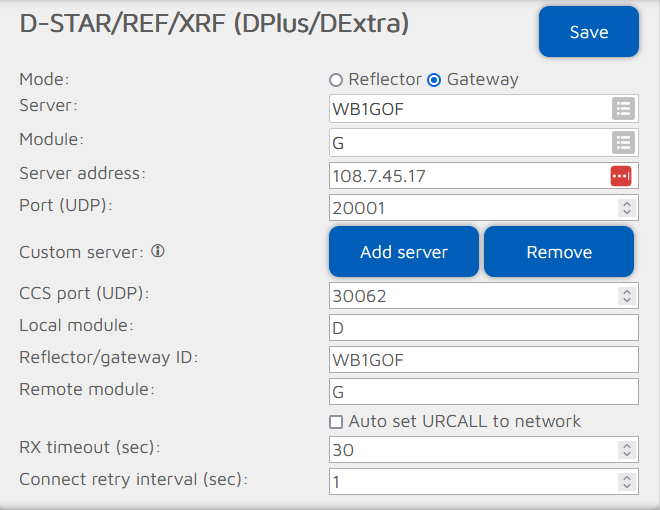

Advanced mode checked:
Connectors Menu
D-Star/REF/XRF (DPlus/DExtra) section

Just under the Remote module

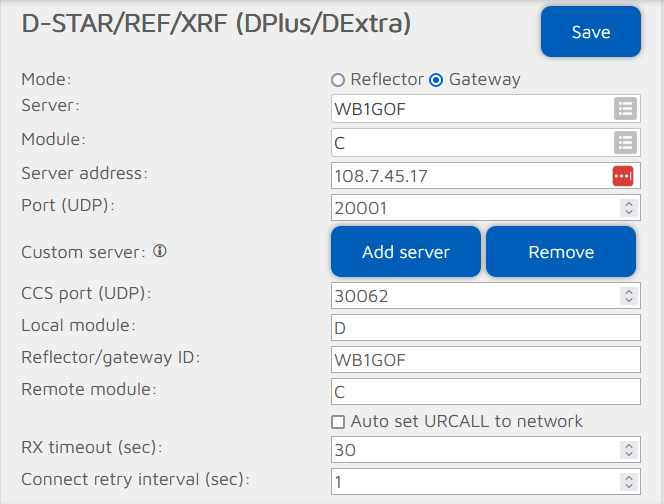

That works:
